In this Video I am trying to remove the Pattern lock of Vivo Y95 with the help of MRT Dongle,
Requirements -
A PC or Laptop With Windows Operating System.
MRT Dongle MRT VIVO Tool Software
USB Cable
Tweezer for EDL Point Shorting
Procedure –
1. Switch off your Vivo Phone
2. Remove the Sim Tray

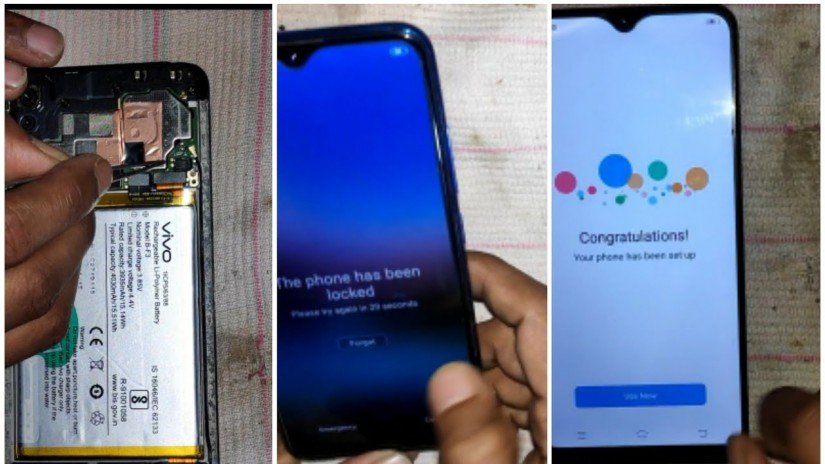

3. Open the back cover of the phone carefully (please do not tear the Fingerprint Scanner flex)
4. Remove the steel greed plate 5. Remove the Fingerprint Scanner Flex Tip
6. Install the Qualcomm USB Driver to Your Windows PC/Laptop
7. Connect the MRT Dongle to your PC (If You are using Cracked Version Then no need to connect Dongle)
8. Open the MRT Vivo Tool
9. Select the Model to Y93/Y95
10. Remove the battery flex tip from PCB and Short the Two points (for EDL Mode) shown in the video
11. Connect the USB Cable to the phone
12. In Computer device manager A New Port is detected please ensure the port number started with Qualcomm.
13. In the software Change the Port from Auto to COM Port which is visible in the device Manager.
14. Start the process
15. Wait for Process to complete
16. Remove the USB Cable from Phone
17. Connect the Battery Connector and press the power Key
18. A error comes “Wipe data fail”
19. Press OK and then press cache data wipe
20. Press “Restore all settings”
21. Press “back” and press “reboot”
22. After a few minutes (Approx. 7 to 15 Min) Process will be completed
Thanks for watching this video. If You have any query please feel free to write in Comment Section.
